Delivering Solutions

Services and Capabilities

OC Custom Coating provides precision finishing services for aluminum and ferrous/non‑ferrous alloys.

Core processes include Cerakote®, Duracoat®, powder coating, anodizing (Type II & III), chromate conversion (Chem Film), CARC, and laser marking.

We work to customer drawings, purchase order  notes, and referenced specifications. Full process documentation and certifications are available upon request to support compliance and quality assurance.

  • Cerakote® (H/Elite/ C-Series) thin-film; typical DFT ~0.5 – 1.0 mil
  • Duracoat® air-cure polyurethane; DFT ~1 – 3 mil; optional
    matte → gloss clear.
  • Prep: blast, solvent/ degas bake; controlled masking;
    documented cure.
  • Polyester & polyurethane powders; epoxy/ epoxy-polyester
    hybrids per application.
  • DFT ~2.0 – 4.0 mil; matte/ satin/ gloss & texture options.
  • Cure with calibrated metal-temp probes; two ovens handle up
    to 12 ft parts.
  • Pretreat: blast + phosphate (steel) or conversion coat
    (aluminum).
  • Topcoats per MIL-DTL-64159 (Type II); applied to MILDTL-53072.
  • Primers per program (e.g., MIL-DTL-53022/ 53030).
  • System DFT: primer ~1.0 – 1.5 mil; topcoat ~1.8 – 2.5 mil (typ).
  • FS colors; IRR/ reflectance when specified; QPL lot
    traceability.
  • Adding powder CARC topcoat capability; qualifying
    materials/ equipment.
  • Availability & color options on request.
  • Type II Class 1 (clear, sealed) ~0.0002 – 0.0007 in.
  • Type II Class 2 (dyed, sealed).
  • Type III Class 1 (hardcoat, natural) ~0.0005 – 0.003 in.
  • Type III Class 2 (hardcoat, dyed).
  • Type I: Class 1A (corrosion), Class 3 (conductivity).
  • Type II (trivalent/RoHS): Class 1A & Class 3 equivalents.
  • Color varies by alloy/ process; documentation per spec.
  • Fiber laser (1064 nm) on anodized Al, stainless, coated parts.
  • Logos, serials, UID/ Data Matrix; fixture-based repeatability.
  • DFT (ASTM D7091), adhesion (ASTM D3359), gloss/ color as
    required.
  • Anodize seal checks per spec; traveler sign-offs; batch/ lot
    traceability.
  • Certificates of Conformance; first-article sampling on request.

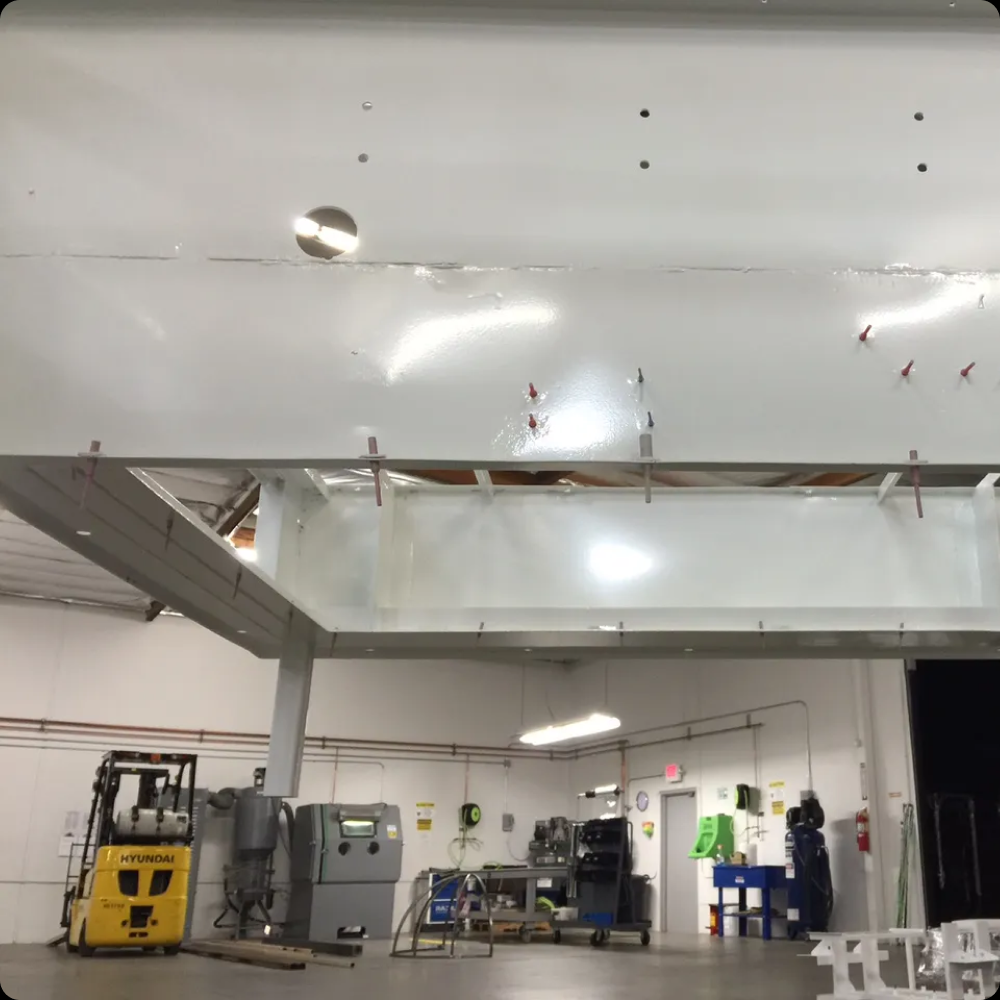

  • Four curing ovens (two for material up to 12 ft length).

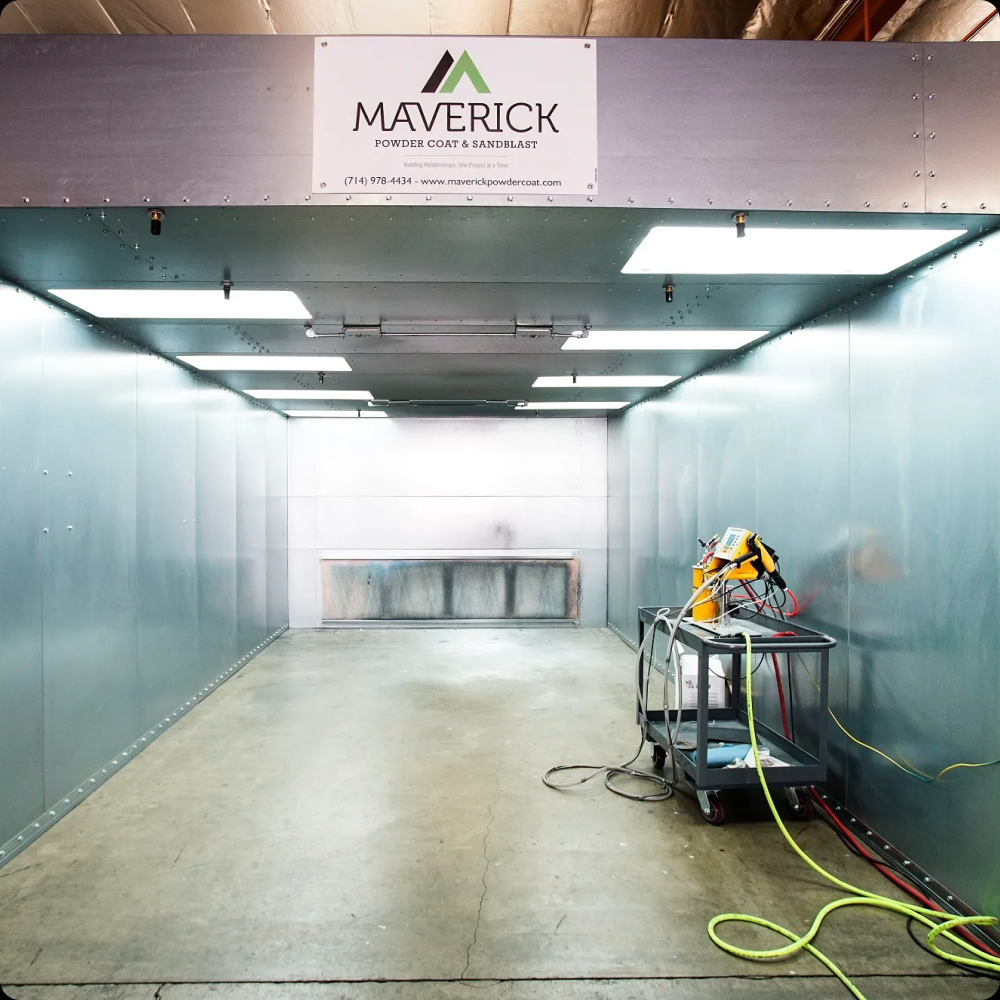

  • Eight sandblast cabinets; four spray booths (up to six
    simultaneous applicators).
  • Two Anaheim facilities; 20,000+ sq ft operational space.
  • Part size/ rack envelope and specific alloys by request; we review each drawing for masking and growth targets prior to release.
  • Standard lead times vary by load; expedited options available subject to line capacity and color availability.
